The high pressure safety valve is the control componment in the fluid transmission system.It has the functions of cut-off,regulation,diversion,prewention of reverse flow,voltage stabilization,overfloe and pressure relief.It can be used to control the flow of various types of fluids such as air,water,steam,various corrosive media,mud oil,liquid metal and radioactive substances.
Product Origin: China
Shipping Port: Shanghai/Nanjing
Lead Time: 6 wks
High precision high pressure safety valve
High precision, low and medium high pressure safety valve is suitable for the protection of pressure vessels and pipelines and the occasions requiring high opening pressure precision. According to customer requirements, safety overflow valve and deep low temperature and high temperature safety valve with forced opening of exhaust and liquid discharge can be provided.
Feature
High Precision,Light Weight,High Reliability
Application industry：
High pressure safety valves are mainly used in aerospace arrow valves and engine valves, shipbuilding and nuclear industry
|
Structure Type |
Direct Acting Type ,Reverse Acting Type,Pilot Operated Type |
|
Medium |
Air,Helium,Nitrogen,Gas,Kerosene,etc. |
|
Flow Rate |
2ɡ/s~1200ɡ/s |
|
Nominal Diameter |
Φ6mm~Φ100mm |
|
Opening Pressure |
0.25MPa~0.70MPa |
|
Accuracy |
±0.003MPa |
|
Feature |
High Precision,Light Weight,High Reliability |
Product display

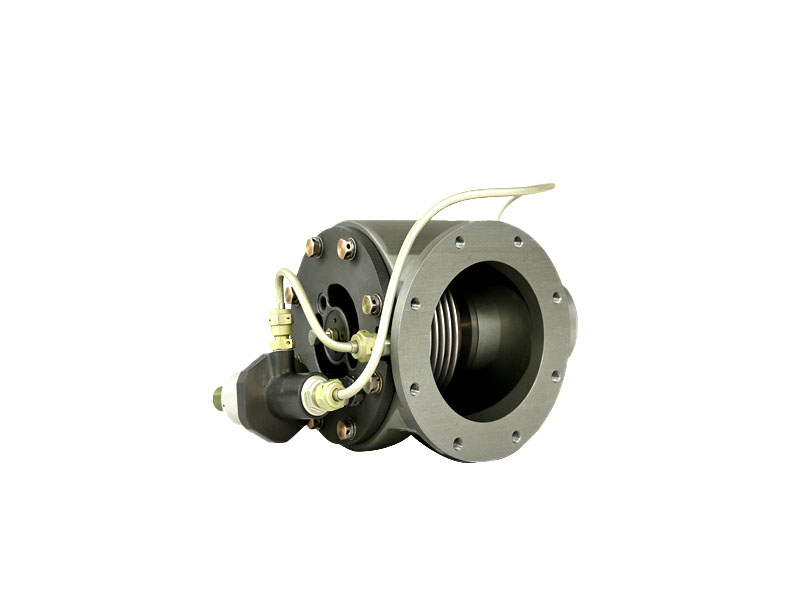

Pilot Operated Safety Valve

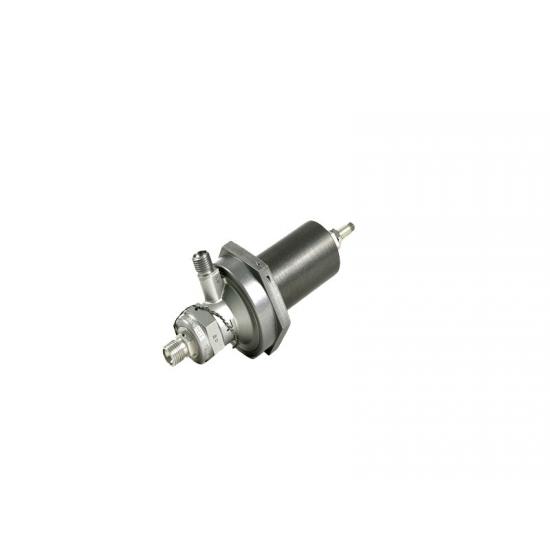

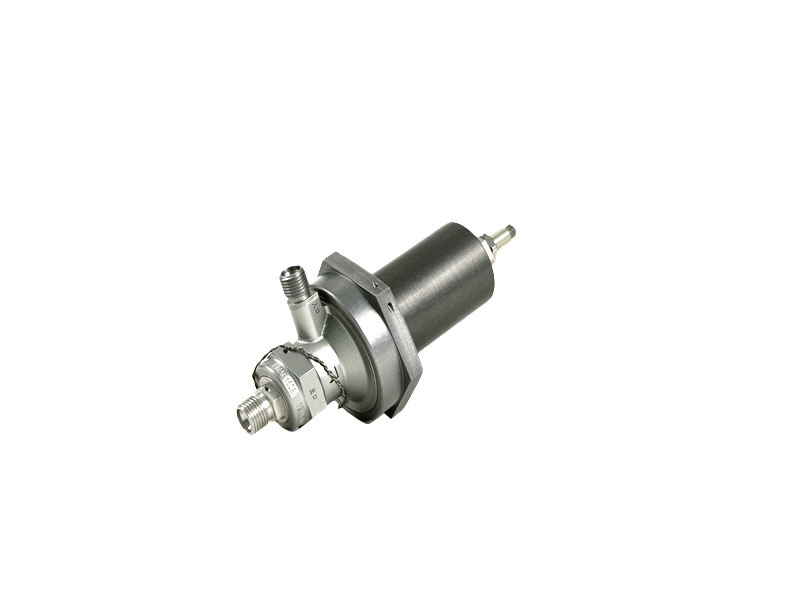

Direct Acting Safety Valve
