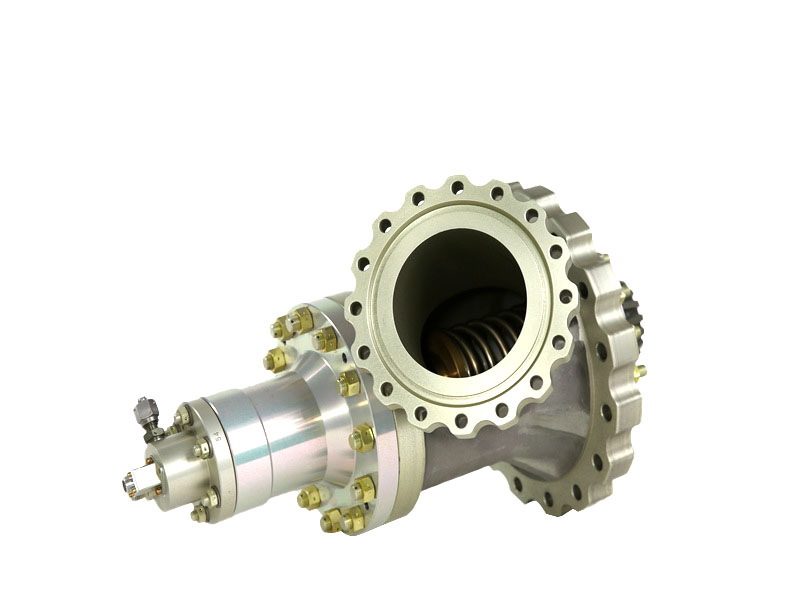

Large diameter low temperature sealed filling valve

Deep and low temperature, medium resistance, high sealing filling valve, suitable for liquid filling and discharge in containers and pipelines.According to customer needs, mechanical top open type and pneumatic top open type filling valve can be provided, and special material selection and design for the long-term use (storage) requirements of corrosive media such as toxic, flammable and explosive materials.

Product Origin:China

Shipping Port:Shanghai/Nanjing

Lead Time:6 Wks



Product Detail

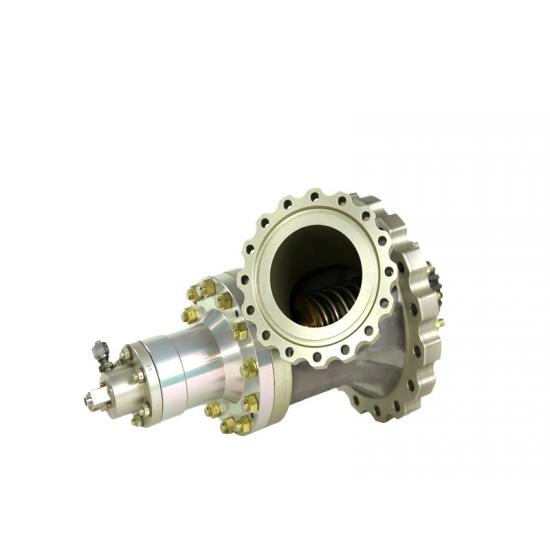

Large diameter low temperature sealed filling valve
Feature

Large Diameter Opening and Closing Seal,Low Temperature Sealing,On-line

Monitoring,Liquid Hydrogen Temperature Zone

Application industry
low temperature sealed filling valves are mainly used in aerospace arrow valve and engine valve, shipbuilding and nuclear industry

Technical Parameters

Structure Type

Mechanical Open-top Type,Pneumatic Type,Manual Operated Type

Nominal Diameter

Φ16 mm,Φ50 mm,Φ100 mm

Medium

 Liquid Oxygen,Liquid Hydrogen,Kerosene

Opening Way

Manually Operated Type,Mechanical Open-top Type,Pneumatic Type

Sealing Pressure Difference

0 c~1 c, 0.05 c~0.5 c (0.6 c,0.8 c,1.0 c)

Weight

0.23 kg~10.69 kg
